1. IK milling heads can upgrade or replacement your original machine body, milling machine or special machine.
2. Chrome quill with super precision preloaded bearing can bring the high quality cutting benifits for machine and we also offer P4 bearings for your optional.
3. Machining travel can up to 150mm (6").

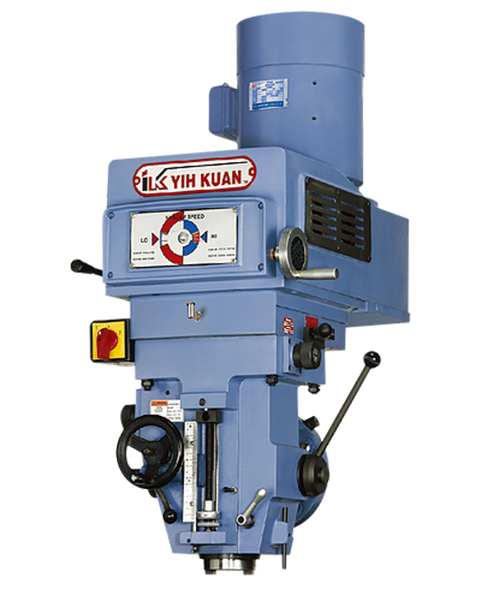

4. This product is variable turret milling machine head.
5. Offer air operated brake for you to optional.
6. There are 11 models in IK Turret Milling Machine Head Series.

MODEL	Unit	IK-5VA
Spindle
Spindle Nose Type		NT40
Spindle Motor	hp	5
Quill Travel	mm	150(6”)
Spindle Outside Diameter		105Φ Back Lock
Spindle Feeds Range	mm	Three Sections
		0.076	(0.003”)
		0.038	(0.0015”)
		0.203	(0.008”)
Step of Spindle Speed	stage	Variable
Spindle Speed	rpm	70~3600
STANDARD ACCESSORIES (● INCLUDE IN PRODUCT)
Spindle Nose Type	NT40
Spindle Motor	●
Draw Bar	●
OPTIONAL ACCESSORIES (○ APOLEGAMY)
Air Operated Brake	○

Country of Origin	Taiwan
Weight (Approximate)	kg	162
Warranty	1 year (non artificial mistake)
