Introduction

Angle milling heads are pivotal in enhancing the versatility and efficiency of machining operations, allowing machines to reach otherwise inaccessible angles with precision. At Yih Kuan, we offer a range of angle milling heads including 90° angular heads, 90° deep milling heads, and 45° universal milling heads, designed to fit various machining setups such as vertical/horizontal machining centers, gantry milling machines, boring mills, and milling machines. This article explores the distinct features and applications of each type to help you select the best milling head for your requirements.

Understanding Different Angle Milling Heads

Angle milling heads are specialized tools that facilitate machining at various angles, which is critical when working on complex parts with intricate geometries. Here are the key differences between the angle heads we offer:

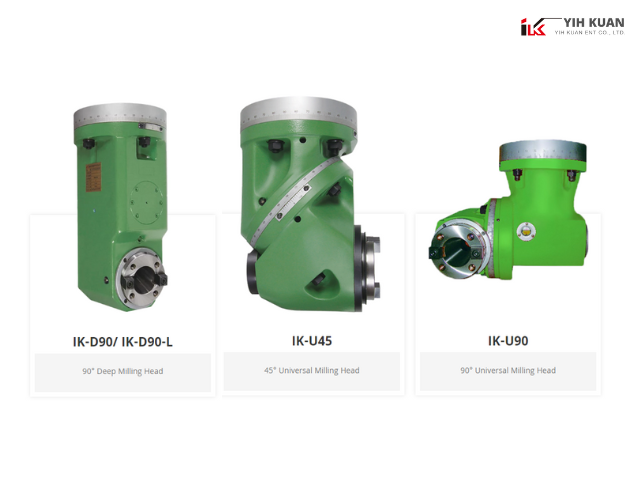

90° Angular Head

• Features: This head positions the tool at a precise 90-degree angle relative to the workpiece, making it ideal for side milling, drilling, and tapping operations that require orthogonal approaches.
• Applications: Perfect for jobs that demand precision in creating perpendicular features and external edges.

90° Deep Milling Head

• Features: Similar to the standard 90° angular head but designed for deeper cuts and extended reach within cavities or alongside protrusions.
• Applications: Used extensively in mold making and automotive industries where accessing deep pockets and performing complex side milling are necessary.

45° Universal Milling Head

• Features: Offers the flexibility to adjust the tool orientation to 45 degrees, providing an optimal angle for chamfering, beveling, and inclined surface machining.
• Applications: Ideal for aerospace and general engineering sectors where angled features and chamfers are frequently required.

How to Choose the Right Angle Milling Head

Selecting the appropriate angle milling head depends on the specific machining tasks and the geometry of the parts being manufactured:

• Material and Geometry Considerations: Assess the types of materials you work with and the complexities of the part geometries. For standard side milling and drilling, a 90° angular head might suffice, while more complex parts with deep recesses may necessitate a 90° deep milling head.
• Machining Center Compatibility: Ensure the selected head is compatible with your existing machining center in terms of mounting, rotational speed, and torque capabilities.
• Production Requirements: For high-volume production with repetitive angled cuts or features, the 45° universal milling head offers the versatility needed for various operations without the need for frequent tool changes.

Conclusion

Angle milling heads significantly expand the capabilities of standard machining centers by allowing for precise angled cuts and operations. Whether you need a head for straightforward perpendicular operations, deep pocket machining, or versatile angled applications, Yih Kuan has the solution. Our range of 90° angular heads, 90° deep milling heads, and 45° universal milling heads are engineered to meet diverse manufacturing needs, enhancing both flexibility and precision in your machining processes. For more information on how our angle milling heads can benefit your operations, or to discuss your specific machining challenges, please contact Yih Kuan. We’re here to help you achieve optimal machining efficiency and quality.
