1. IK milling heads can upgrade or replacement your existing machine body, milling machine or special machine and also it can bring more stable and high-quality machining benefits for work piece cutting.
2. It is used for mold manufacturing or precision processing.
3. The machine processing for travel is 320 mm. We also provide “No slide” format.
4. This product is used in Gantry (Plano) Milling Machine (vertical / horizontal), suitable for heavy metal cutting.
5. Plano milling head series offer accessory head for you to optional.
It will apply for multi-angle machining to upgrade efficiency and longer machining range.
6. This product of standard motor is 10HP. We also offer 12.5HP for you to optional.
7. Offer pneumatic blade locking device, bearing guide screw, pneumatic leveler for you to optional.

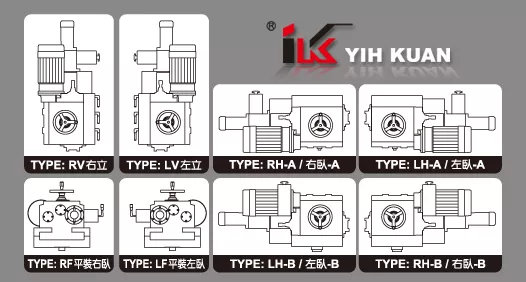

8. There are 10 models in IK Plano Milling Machine Head Series.

Model	Unit	IK-610-LV
SPINDLE
Spindle Bore Diameter		NT50
Diameter of Spindle Nose	mm	Φ128.6
Spindle Motor	Hp	10 / 4P	12.5 / 4P
Step of Spindle Speed	stage	6
Spindle Speed (50Hz)	rpm	102	345
		153	469
		229	705
Spindle Speed (60Hz)	rpm	123	414
		184	563
		275	846
WORKING RANGE
Max Diameter of Cutter	mm	200
Travel	mm	320(up 220 /down100 )
Rapid Travel AC Motor		0.4Kw/0.5Hp AC 3 Phase 4 Poles x 1/40
Rapid Travel Speed	mm/min	177(50Hz) 218(60Hz)
Reversal Slide		2mm/rev →\|\|← 0.01mm
STANDARD ACCESSORIES
Spindle Motor		10HP / 4P	12.5HP / 4P
		●	-
		-	●
Rapid Travel AC Motor		●
OPTIONAL ACCESSORIES (APOLEGAMY)
Pneumatic Blade Locking Device		○
Bearing Guide Screw		○
Pneumatic Leveler		○
IK-A90 Angular Head		○
IK-D90 Deep Head		○
IK-U90 Universal Head		○
IK-U45 Universal Head		○

Place of Origin		Taiwan
Weight (Approximate)	kg	530
Warranty		1 year (non artificial mistake)
